HABOTEST HT5910 Leakage Switch Tester LCD Digital Resistance Meter RCD/Loop Tester 1000 Data Storage Voltmeter Megohmmeter

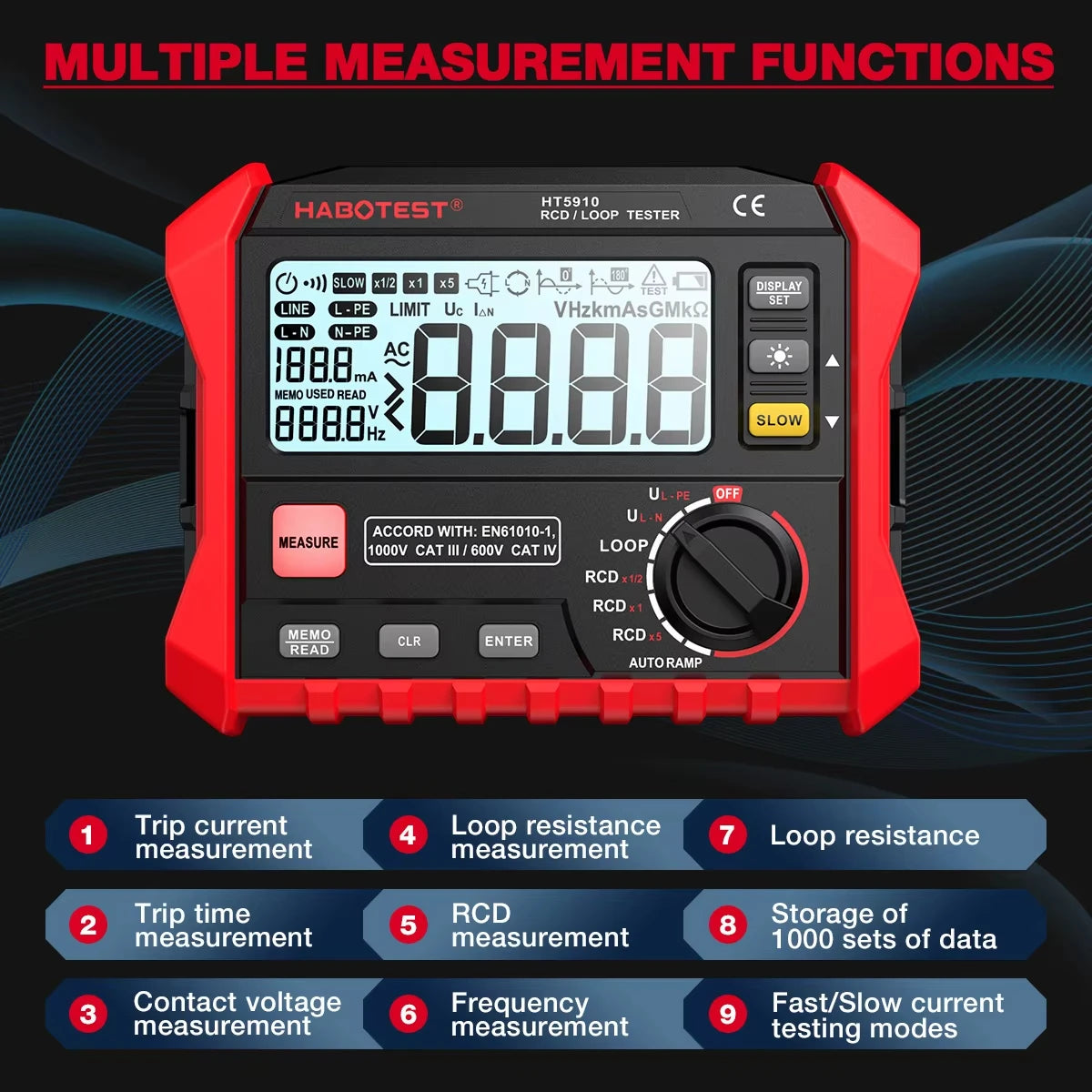

Features:

1. Multifunctional measurements include tripping current, tripping time, circuit resistance for switch leakage, and online voltage, frequency, RCD, and AUTORAMP (trigger current).

2. Functionality to measure tripping current, tripping time, contact voltage, and loop resistance.

3. Capable of storing up to 1000 sets of test results for easy reference.

4. Data stored in the main unit can be uploaded to a PC via the USB 2.0 interface.

5. Compact and portable resistance tester for convenient use with stable performance.

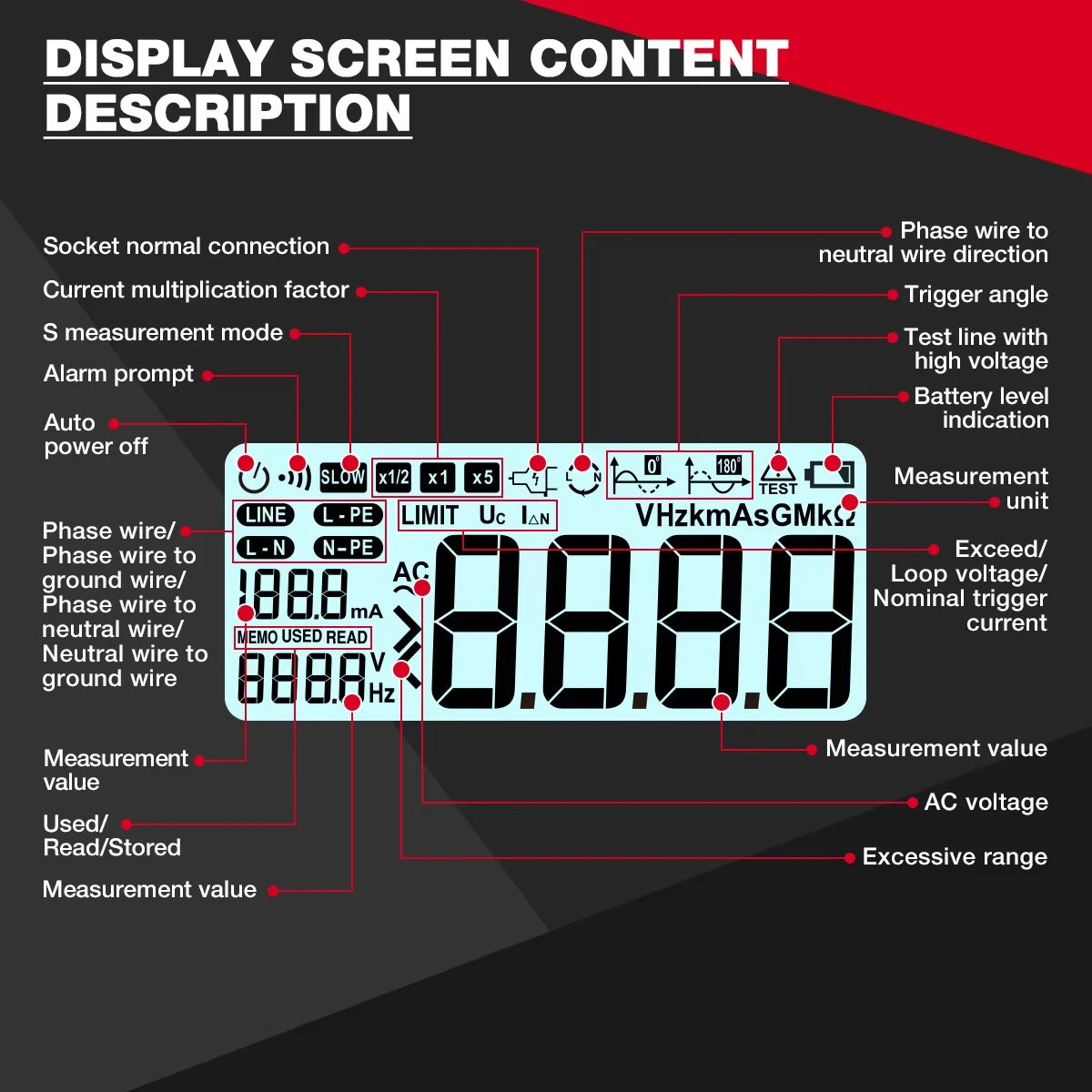

6. 4.7-inch LCD display with backlight for easy result checking in low-light conditions.

7. Powered by 6 x 1.5V AA batteries (not included), with low battery indicator.

8. Ideal for electricians for testing, inspection, and maintenance.

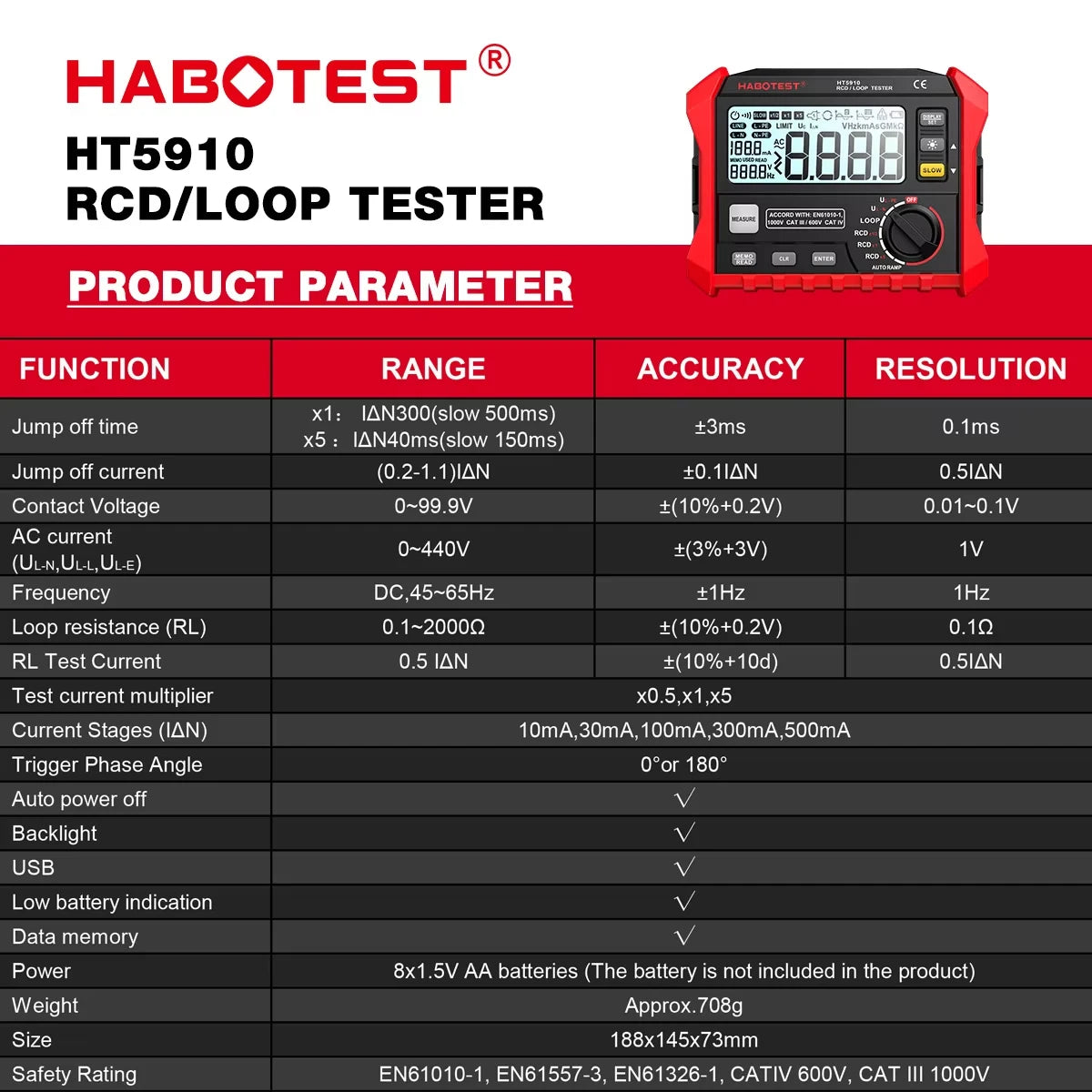

Specifications:

Model: HT5910

Material: ABS

AC Phase: Voltage Measurement: 0~440V

Frequency Measurement: DC, 45~65Hz

Test Current Amplification Ratios: 0.5, 1, and 5

Fast/Slow Current Test Ranges: 10, 30, 100, 300, 500mA

Safety Level: CAT III 1000V, CAT IV 600

Maximum Common Mode Voltage: 600V AC RMS

Display Type: LCD

Range Selection: Fully automatic range

Frequency Detection: Automatic

Overrange Display: ">"

Power Consumption: 100mW

Operating Temperature and Altitude: 0~40℃, 2000m

Storage Temperature and Altitude: -20~70℃, 12000m

Power Supply: 8 x 1.5V AA batteries (not included)

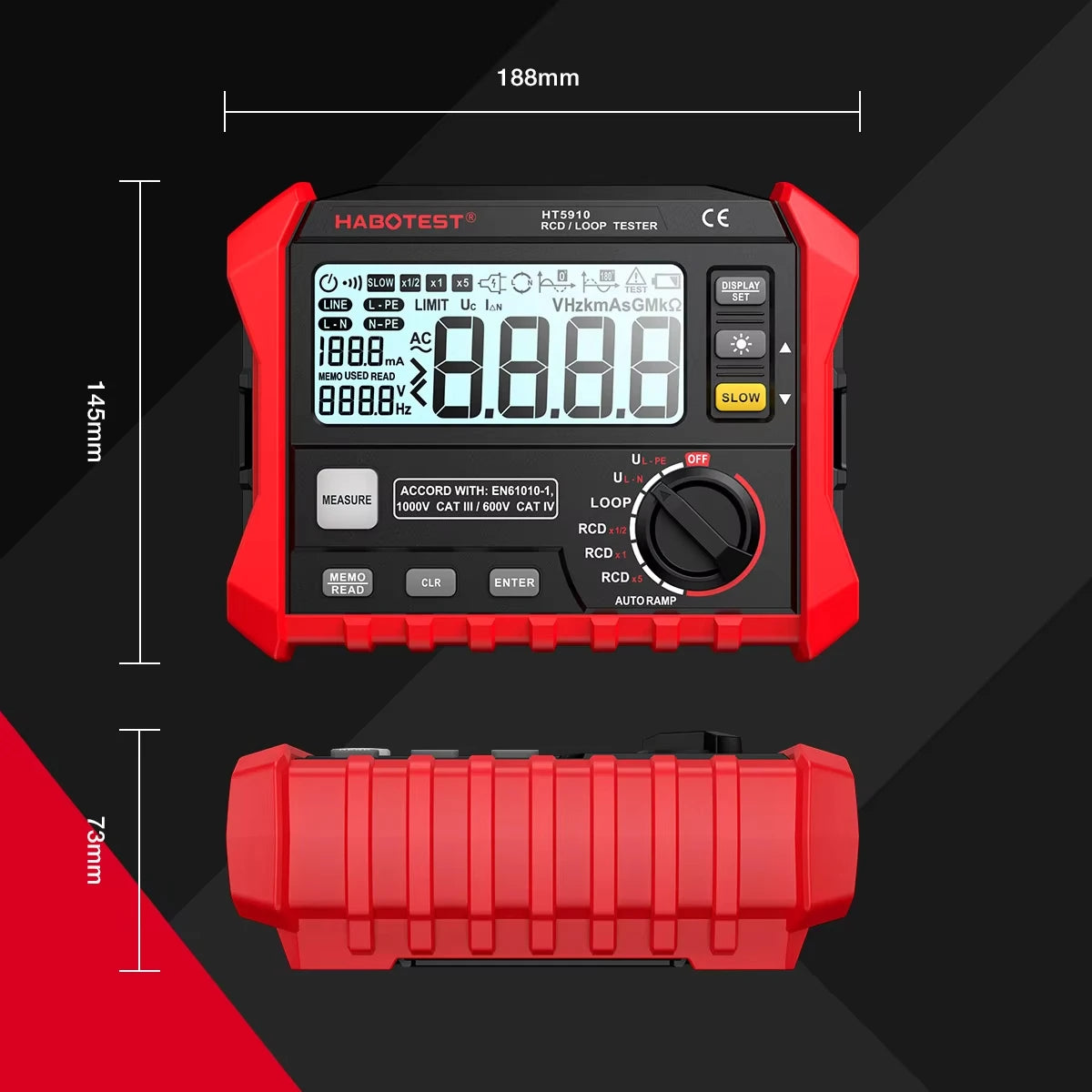

Item Size: 19014068mm/7.485.512.68in

Item Weight: 948g/33.47oz

Package Weight: 1544g/54.47oz

Package Size: 33.5279cm/13.1910.633.54in

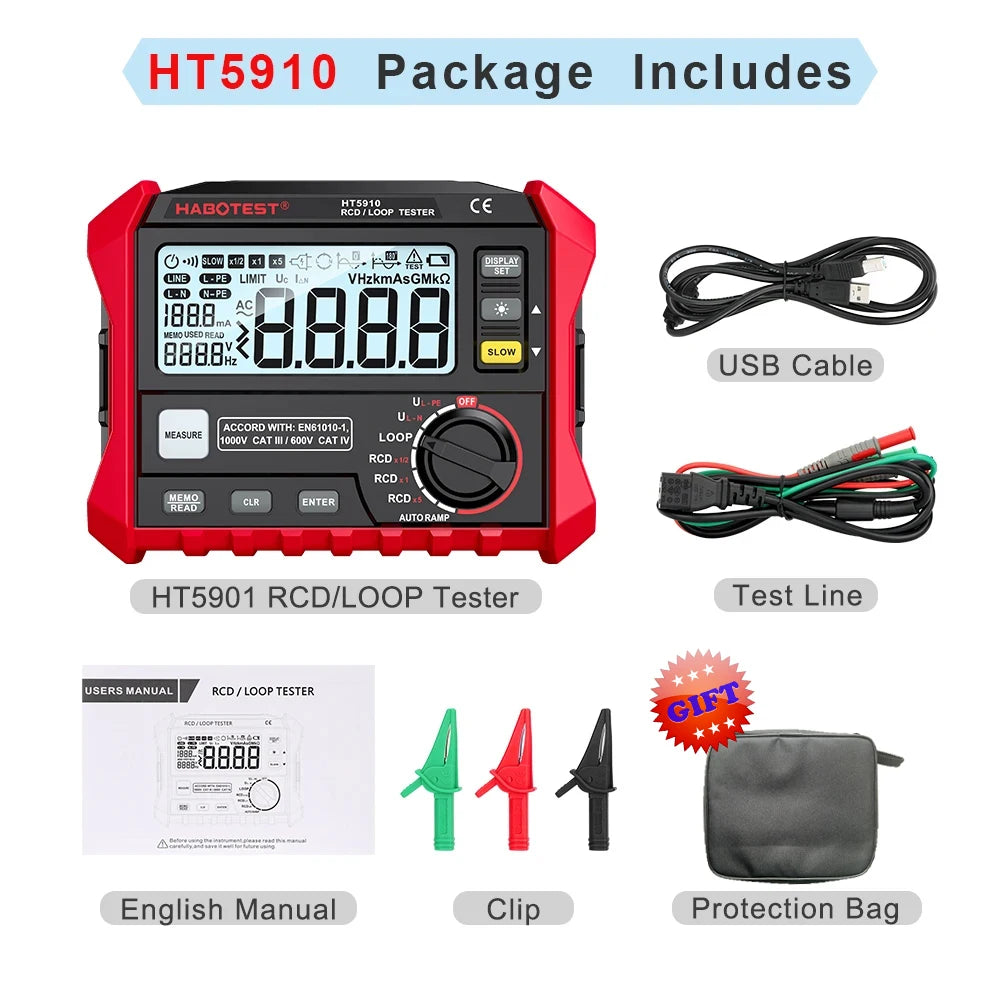

Package Contents:

1 * Tester

1 * Test Lead

3 * Clips

1 * USB Cable

1 * CD



Specifications:
Feature 1: Leakage Switch Tester
The HABOTEST HT5910 is a versatile leakage switch tester designed to ensure the safety of electrical installations. It is an essential tool for electricians and DIY enthusiasts alike, providing a reliable method to detect any faults in the electrical system.

Feature 2: Digital Resistance Meter
Equipped with a digital resistance meter, the HT5910 offers precise measurements, making it ideal for testing the continuity of circuits and components. The digital display ensures clear readings, making it easy to interpret the results.

Feature 3: RCD/Loop Tester
The RCD/Loop tester function of the HT5910 is a valuable addition for electrical safety checks. It allows users to test the functionality of residual current devices (RCDs) and loop circuits, ensuring that they are operating correctly and providing the necessary protection.

Display Type: Digital Only
The HT5910 features a digital display, providing clear and accurate readings without the need for additional interpretation. This feature enhances the user experience and ensures that the test results are easily understood.

DIY Supplies: Electrical
Designed for electrical DIY projects, the HT5910 is a valuable tool for anyone working on electrical installations. It is a reliable companion for electricians, technicians, and hobbyists alike, offering a comprehensive range of testing capabilities.

Features:
|How To Use A Non Contact Voltage Tester|Latency Tester|Disintegration Tester|

**Versatile Electrical Testing**
The HABOTEST HT5910 is a comprehensive electrical testing device that caters to a wide range of scenarios. Whether you're checking the continuity of circuits, testing the functionality of RCDs, or performing a leakage switch test, this multifunctional tool has got you covered. Its compact design and easy-to-use interface make it a valuable addition to any toolkit.

**Precision and Safety**
The HT5910 is not just a tool; it's a guarantee of precision and safety. The digital resistance meter function ensures accurate measurements, while the leakage switch tester and RCD/Loop tester functions provide peace of mind by detecting any potential hazards in your electrical system. The device's digital display ensures that you can interpret the results quickly and accurately, minimizing the risk of electrical accidents.

**Ease of Use and Storage**
The HT5910 is designed with the user in mind. Its intuitive interface and straightforward operation make it accessible for both professionals and DIY enthusiasts. With the ability to store up to 1000 data sets, you can keep track of your testing history and refer to it when needed. Its compact size and lightweight design make it easy to carry and store, ensuring that you have the necessary tools at hand whenever you need them.
